JMADA7222-3S1H-J

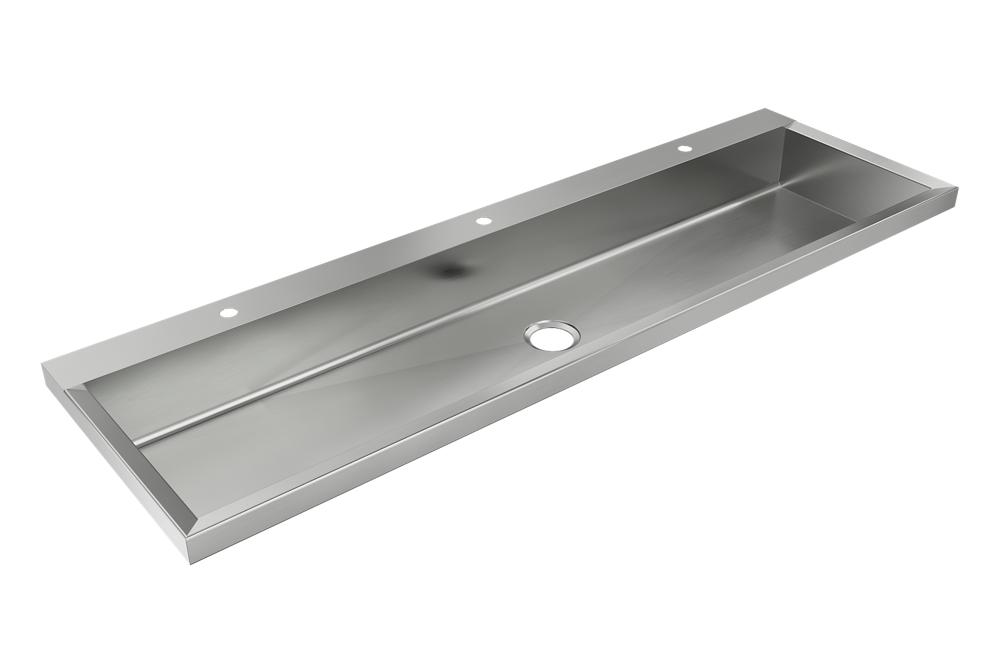

Stainless Steel 72" x 22" x 6-1/2" Wall Hung Multi-Station 3-Hole Lavatory ADA Sink

Loading... Please Wait.
Material Stainless Steel
Installation Type Wall
Gauge 14
Number of Bowls 1
Minimum Cabinet Size 0"

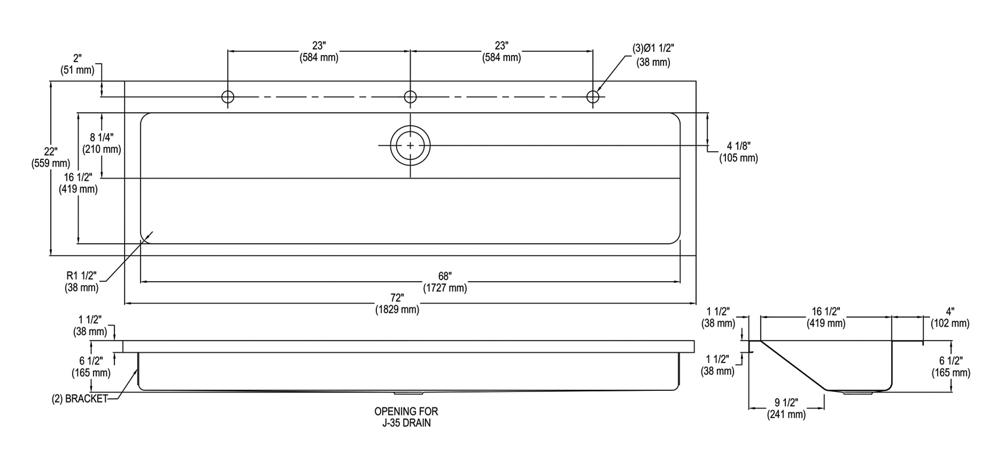

Dimensions L: 72"
W: 22"
H: 6-1/2"
Bowl 1 Dimensions L: 68"
W: 16-1/2"
H: 6-1/2"
Drain Size 3-1/2"
Application Type Lavatory
Shipping Dimensions L: 80"
W: 25-1/4"
H: 31-1/2"
Shipping Weight 66 LBS
Country Of Origin USA
ADA Yes
Code Compliance Sinks ASME A112.19.3/CSA B45.4
ADA & ICC A117.1

Since 1933 Just Manufacturing has been the industry standard for designing and producing quality grade plumbing products and fixtures. Our role as an industry leader remains unsurpassed. From hospitals to schools to a variety of university complexes, Just Manufacturing stainless steel sinks and plumbing products enhance both form and function in significant construction projects around the world.

  • Product is ADA compliant when properly installed
  • 16-gauge, Type 304 stainless steel
  • 1-1/2"-wide, inward-sloping top-channel rims with 2" flat front apron
  • Square rim corners
  • 3-1/2" drain opening
  • Exposed surfaces are blended by hand to a uniform lustrous finish
  • Furnished with wall hanger and stainless steel support brackets
