J7703S-J

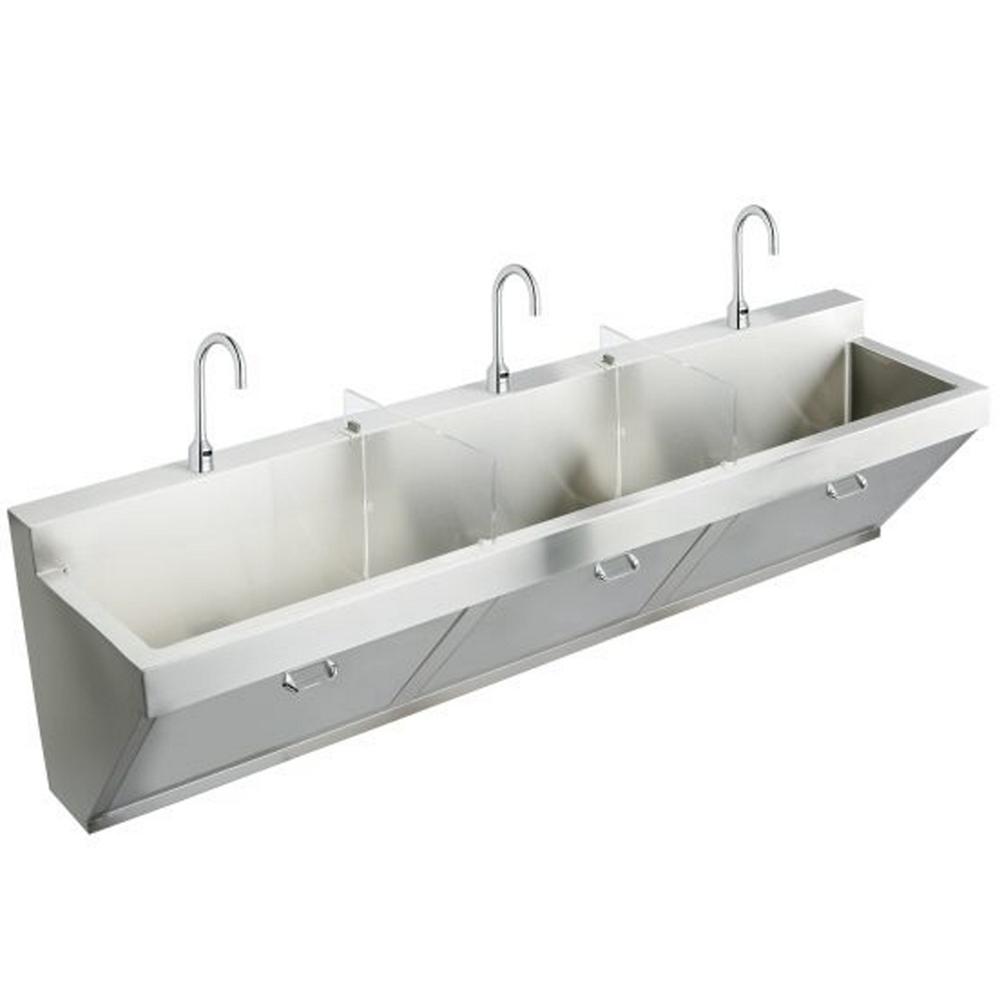

Stainless Steel 90" x 23" x 26" Wall Hung Triple Station Surgeon Scrub Sink Kit w/3 Faucets+3 TMV+Drain+P-trap

Loading... Please Wait.
Material Stainless Steel
Installation Type Wall
Gauge 16
Sound Deadening Full spray sides and bottom with Bottom only pads
Number of Bowls 3
Minimum Cabinet Size 0"

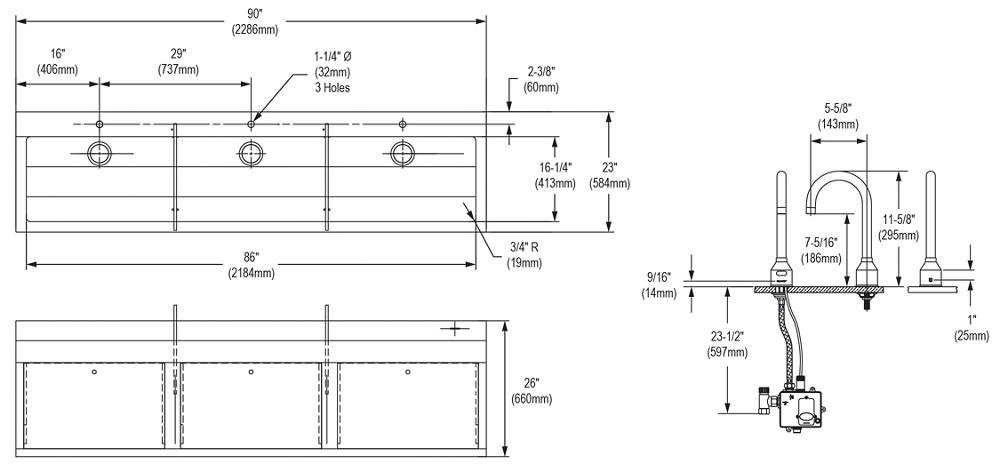

Dimensions L: 90"
W: 23"
H: 26"
Bowl 1 Dimensions L: 28"
W: 16-1/4"
H: 11"
Bowl 2 Dimensions L: 28"
W: 16-1/4"
H: 11"
Bowl 3 Dimensions L: 28"
W: 16-1/4"
H: 11"
Drain Size 3-1/2"
Drain Size 2 3-1/2"
Application Type Scrub + Handwash
Shipping Dimensions L: 95"
W: 28"
H: 32"
Shipping Weight 243 LBS
Included with Product three sensor faucets with AC plug-in / 12 AA batteries
J-35-SSF drain
mixing valve
JT-150 p-trap
ADA No
Code Compliance Sinks ASME A112.19.3/CSA B45.4
Code Compliance Faucets NSF 372 (lead free)
Code Compliance Accessories ASSE 1070
ASSE 1069
NSF 372 (lead free)
ASSE 1017

Since 1933 Just Manufacturing has been the industry standard for designing and producing quality grade plumbing products and fixtures. Our role as an industry leader remains unsurpassed. From hospitals to schools to a variety of university complexes, Just Manufacturing stainless steel sinks and plumbing products enhance both form and function in significant construction projects around the world.

  • 16-gauge, Type 304 stainless steel
  • Keyed access door(s) to hide plumbing
  • 4"-high, full-length backsplash
  • Sound-deadening material minimizes sound and vibration for a quieter time at the sink
  • Coved corners, wall hanger and full enclosure
  • Exposed surfaces are polished to a uniform lustrous finish
  • 3-1/2" drain opening
  • Includes two removable clear-acrylic partitions
