WHLV175S-J

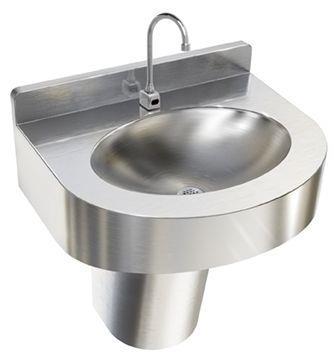

Stainless Steel 24" x 20-1/4" x 27-3/4" Wall Hung Lavatory Sink Kit with Enclosure

Loading... Please Wait.
Material Stainless Steel
Installation Type Wall
Gauge 14
Sound Deadening Bottom only pads
Number of Bowls 1
Minimum Cabinet Size 0"

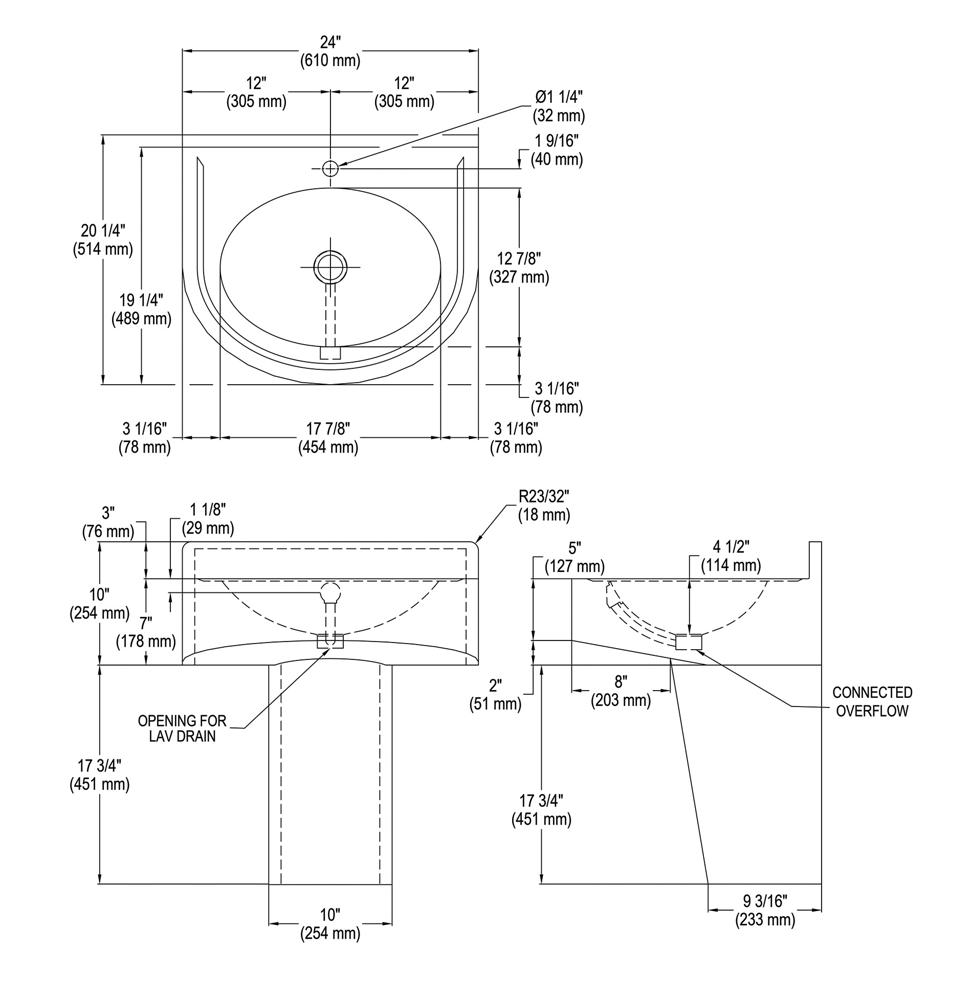

Dimensions L: 24"
W: 20-1/4"
H: 27-3/4"
Bowl 1 Dimensions L: 15-1/2"
W: 11-3/8"
H: 4-1/2"
Drain Size 1-5/8"
Application Type Lavatory
Shipping Dimensions L: 32"
W: 22-1/2"
H: 31-1/2"
Shipping Weight 65 LBS
Included with Product LKF296
LKB721C
LK723
JADA115FS
Country Of Origin CHN
ADA Yes
Code Compliance Sinks ADA & ICC A117.1
ASME A112.19.3/CSA B45.4
Code Compliance Faucets NSF 372 (lead free)
Code Compliance Accessories ASSE 1069
ASSE 1070
ASSE 1017
NSF 372 (lead free)

Since 1933 Just Manufacturing has been the industry standard for designing and producing quality grade plumbing products and fixtures. Our role as an industry leader remains unsurpassed. From hospitals to schools to a variety of university complexes, Just Manufacturing stainless steel sinks and plumbing products enhance both form and function in significant construction projects around the world.

  • 14-gauge, Type 304 stainless steel
  • Exposed surfaces blended by hand to a uniform lustrous satin finish
  • Sound-deadening material minimizes sound and vibration for a quieter time at the sink
  • Product is ADA compliant when properly installed
